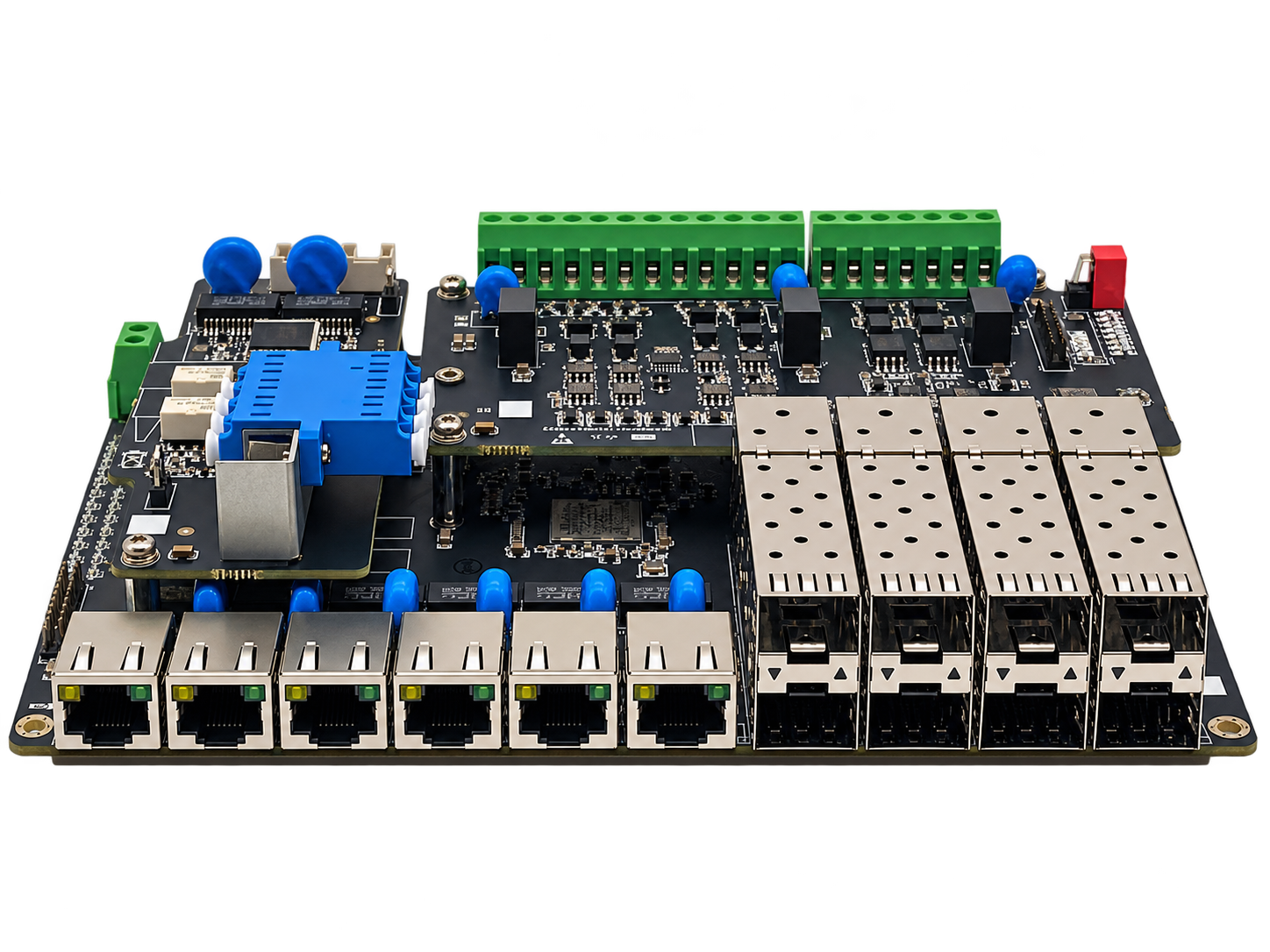

MB-EXIS2360-6GT8GS4RS2CAN-BP Intrinsically Safe Managed Switch Board
Intrinsically safe managed switch board with 6 Gigabit copper ports, 8 Gigabit SFP ports, 4 isolated RS-485 and 2 isolated CAN interfaces, a single 12 VDC power input and one bypass channel.
Key Features
- 6×10/100/1000Base-T + 8×1000Base-X SFP
- 4 isolated RS-485 and 2 isolated CAN interfaces on Phoenix terminal blocks
- 56 Gbps switching capacity and 20.8 Mpps forwarding rate
- One bypass channel and one-touch ring DIP switch
- 12 VDC input with reverse-polarity, overvoltage and overcurrent protection
- −40°C to +85°C operation with fanless passive cooling
Specifications
| Downlink Ports | 6×10/100/1000Base-T in six 1×1 RJ45 connectors |
|---|---|
| Uplink Ports | 8×1000Base-X SFP in four 2×1 SFP cages |
| RS-485 | 4 isolated RS-485 interfaces on a 2×6-pin 5.08 mm Phoenix terminal block |
| CAN | 2 isolated CAN interfaces on a 1×6-pin 5.08 mm Phoenix terminal block |
| Console Port | 1 console port, RJ45 |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 20.8 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 3 Mbit |
| BYPASS | 1 channel |
| Input Voltage | DC 12V |
| Power Connector | 2-pin 5.08 mm Phoenix terminal block, single power input |
| Power Protection | Reverse-polarity, overvoltage and overcurrent protection |
| Power Consumption | <12 W |
| Operating Temperature | −40°C to +85°C |
| Operating Humidity | 5%–95% RH, non-condensing |
| Dimensions | 185×140×37.4 mm (W×D×T) |
| Weight | Approximately 0.4 kg |
| Mounting | Board-level |
| Cooling | Fanless passive cooling |
| Reset Button | Short press to reset; press and hold to restore factory defaults |
| DIP Switch | 1 one-touch ring switch and 1 reserved customizable switch; disabled by default |
| EMC Immunity | IEC 61000-4-5 Level 3 surge, IEC 61000-4-4 Level 2 EFT and IEC 61000-4-2 Level 3 ESD immunity |
Additional Information
Overview
The MB-EXIS2360-6GT8GS4RS2CAN-BP is a managed switch board designed for integration into intrinsically safe equipment. It provides 6 Gigabit copper ports, 8 Gigabit SFP ports, 4 isolated RS-485 interfaces and 2 isolated CAN interfaces, suiting industrial networks in mines, tunnels and similar environments that combine multi-device access with mixed serial communications.
The board runs on a single 12 VDC input with reverse-polarity, overvoltage and overcurrent protection, and includes one bypass channel. Its fanless, passively cooled design supports −40°C to +85°C operation, simplifying integration into intrinsically safe devices and custom enclosures.
