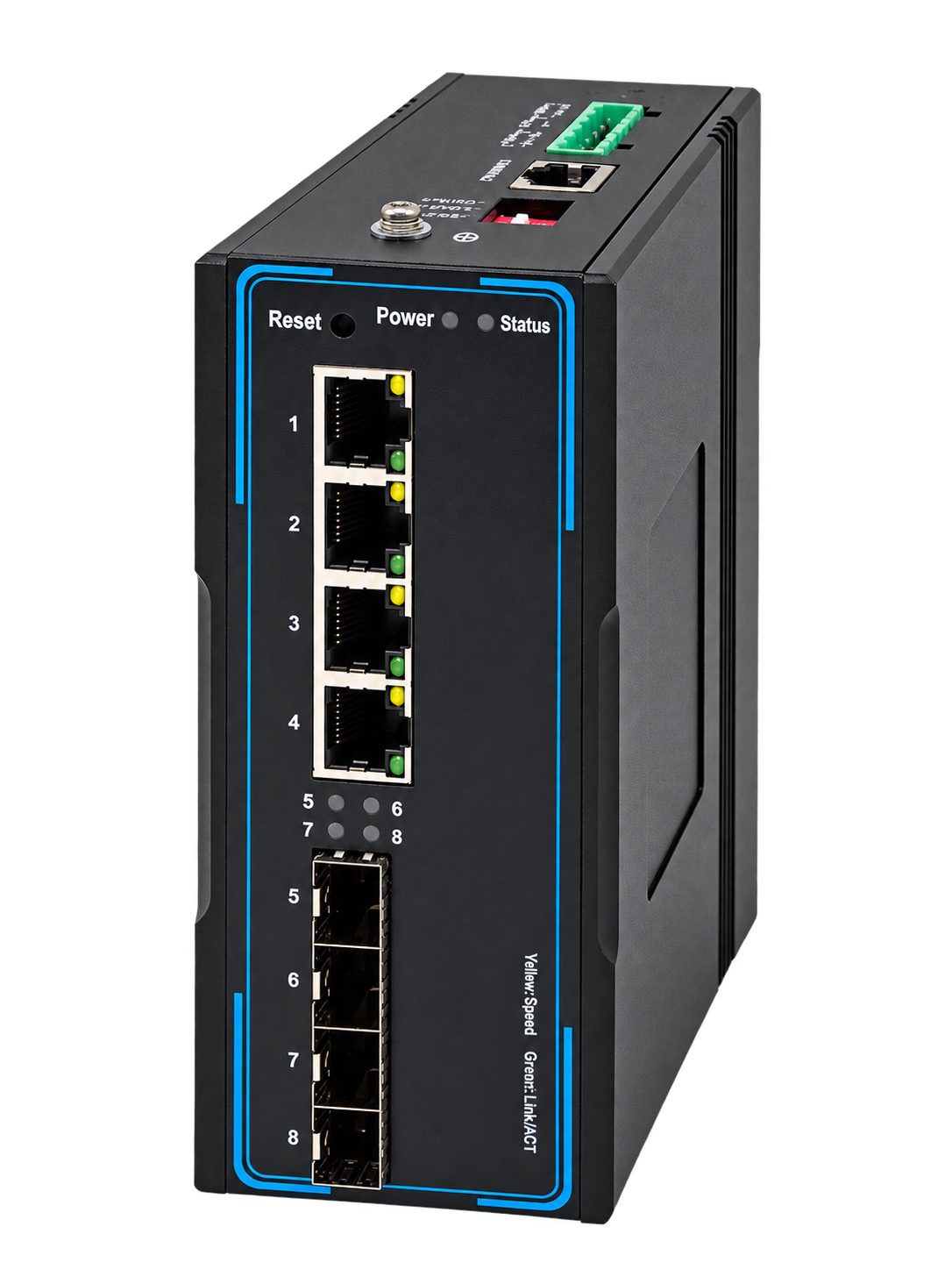

PS2360-4GT4GS-DLPS2360-4GT4GS-DL Layer 2 Managed Industrial Ethernet Switch
Layer 2 managed industrial Ethernet switch with 4 Gigabit copper ports, 4 Gigabit SFP ports, dual redundant wide-range power inputs and one-touch ring setup.
Key Features
- 4×10/100/1000Base-T + 4×1000Base-X SFP
- 56 Gbps switching capacity and 11.9 Mpps forwarding rate
- 12–54 VDC wide-range input with dual power redundancy
- One-touch ring setup and DIN-rail mounting
- −40°C to +85°C operation with fanless cooling
Specifications
| Downlink Ethernet Ports | 4×10/100/1000Base-T |
|---|---|
| Uplink Ethernet Ports | 4×1000Base-X SFP |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 3 Mbit |
| Input Voltage | 12–54 VDC |
| Power Connector | Phoenix terminal block, dual redundant power inputs |
| Power Protection | Reverse-polarity, overvoltage and overcurrent protection |
| Power Consumption | <12 W |
| Operating Temperature | −40°C to +85°C |
| Operating Humidity | 5%–95% RH, non-condensing |
| Dimensions | 153×113×55 mm (W×D×H) |
| Weight | 1 kg |
| Mounting | DIN-rail mounting |
| Cooling | Fanless passive cooling |
| DIP Switch | One-touch ring setup |
| Ingress Protection | IP40 |
| Ethernet Surge Immunity | IEC 61000-4-5 Level 4 |
| Electrical Fast Transient Immunity | IEC 61000-4-4 Level 4 |
| ESD Immunity | IEC 61000-4-2 Level 4 |
| Dying Gasp | Supported |
Additional Information
Overview
The PS2360-4GT4GS-DL provides 4 Gigabit copper ports and 4 Gigabit SFP ports in a fanless DIN-rail enclosure with dual redundant wide-range power inputs. It is designed for Gigabit device access and fiber uplinks in industrial networks.
Final configuration is subject to the model specifications or datasheet.
