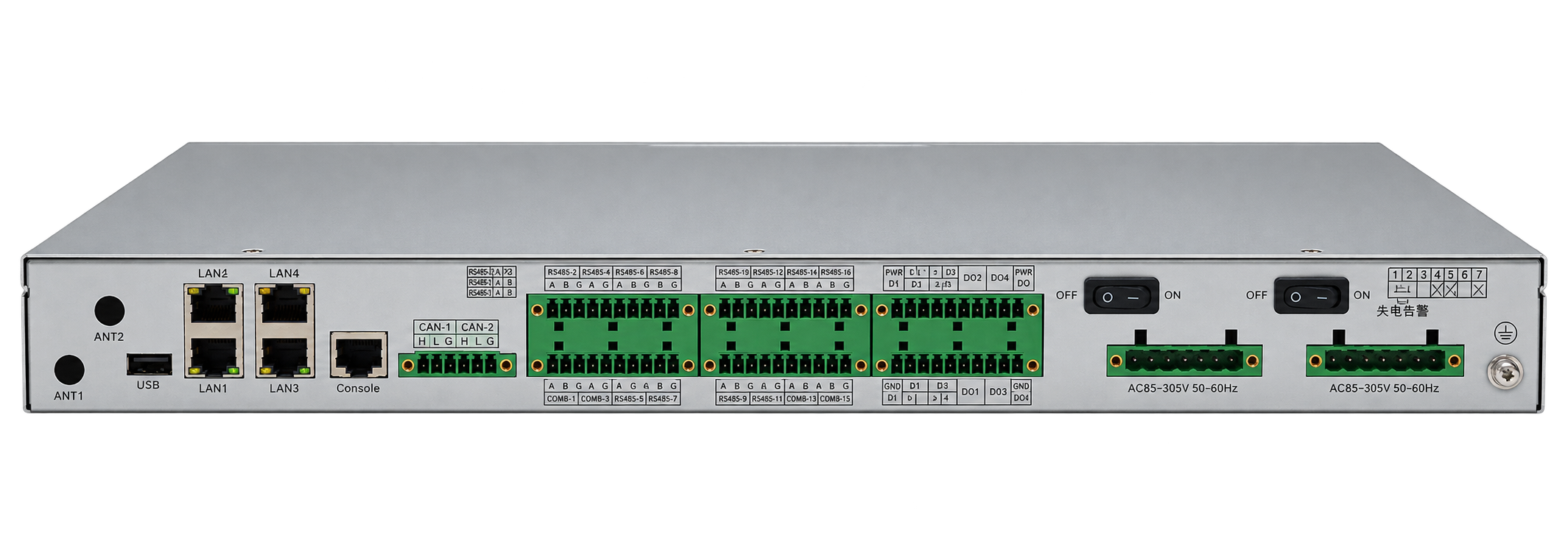

Willow2015-R0Willow2015-R0 Industrial Gateway
1U rackmount industrial gateway based on the Allwinner T113-i platform, with 4 Gigabit Ethernet ports, 512MB DDR3 and 16GB eMMC, 16 isolated RS-485 ports (including 4 RS-485/RS-232 combo ports), 2 isolated CAN interfaces, 4 DI and 4 DO channels, plus 4G expansion and power-loss alarm support.
Key Features
- Allwinner T113-i with integrated RISC-V CPU, dual-core Arm Cortex-A7 and HiFi4 DSP
- 512MB DDR3 1600MHz onboard memory, 16GB eMMC as standard, with TF card expansion
- 4×10/100/1000Base-T RJ45 Ethernet ports
- 16 isolated RS-485 ports (4 of them RS-485/RS-232 combo), 2 isolated CAN interfaces, 4×DI and 4×DO isolated dry/wet contacts
- miniPCIe 4G expansion with SIM card holder; RTC, thermal monitoring chip and power-loss alarm
- 1U rackmount enclosure, AC 85–305V power input with single or dual AC options, −40°C to +70°C operating temperature
Specifications
| Processor | Allwinner T113-i, integrated RISC-V CPU, dual-core Arm Cortex-A7 and HiFi4 DSP |
|---|---|
| Memory | 512MB DDR3 1600MHz, onboard |
| Storage | 16GB eMMC as standard, expandable; 1×TF card slot (onboard) |
| Ethernet | 4×10/100/1000Base-T RJ45 |
| Console and USB | 1×RJ45 Console; 1×USB 2.0 |
| Serial Interfaces | 16 isolated RS-485 ports, 4 of them isolated RS-485/RS-232 combo ports |
| CAN Interfaces | 2 isolated CAN interfaces |
| Digital I/O | 4×DI, 4×DO, isolated dry/wet contacts |
| Wireless Expansion | 1×miniPCIe slot (for 4G module); 1×SIM card holder |
| RTC, Thermal Monitoring and Alarm | RTC, thermal monitoring chip and power-loss alarm supported |
| Power Input | AC 85–305V, 5.08 mm Phoenix terminal block; single or dual AC power options |
| Operating Environment | −40°C to +70°C; 5%–95% RH, non-condensing |
| Dimensions | 440.0×279.0×43.6 mm, 1U rackmount |
| Cooling | passive cooling |
| Ethernet Surge Immunity | IEC 61000-4-5 Level 3 |
| Electrical Fast Transient Immunity | IEC 61000-4-4 Level 3 |
| ESD Immunity | IEC 61000-4-2 Level 3 |
Pre-installed OS
Contact us for supported operating systems and software versions.
Software Development
Contact us to request the SDK, BSP or development documentation.
Customization and Engineering Services
For custom hardware, operating system customization, solution design or development support, explore our services or contact us to discuss your requirements.
Additional Information
Ordering Information
Willow2015-R0: 1U rackmount industrial gateway host with Allwinner T113-i, 4 Gigabit RJ45 ports, 512MB+16GB, single AC 85–305V power input.
Willow2015-R1: 1U rackmount industrial gateway host with Allwinner T113-i, 4 Gigabit RJ45 ports, 512MB+16GB, dual AC 85–305V power inputs.
Final configuration is subject to the model specifications or datasheet.
